D-Link SmartPro DGS-1510-28XMP 24 Ports Manageable Ethernet Switch - 3 Layer Supported - Modular - Twisted Pair, Optical F ...Read More
D-Link SmartPro DGS-1510-28XMP 24 Ports Manageable Ethernet Switch - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty Less
By:D-Link
VPN: DGS-1510-28XMP SKU: 5845223 EAN: 0790069413780

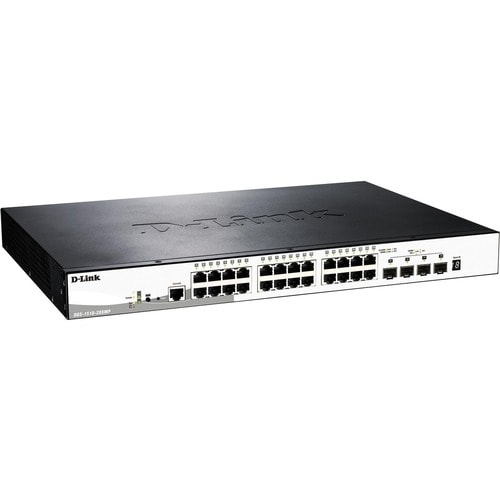

D-Link SmartPro DGS-1510-28XMP 24 Ports Manageable Ethernet Switch - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty

The DGS-1510 Series is D-Link's latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 and 48 10/100/1000 Mbps port models, these switches also include four optical ports - including 2 Gigabit SFP and 2 10G SFP+ ports. The 24 and 48 port versions are also available with 4 10G SFP+ ports instead of the 2 Gigabit plus 2 10G configuration.

10G SFP+ Stacking/Uplink Ports

Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. Six units or 288 Gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency. Users can mix from any of the DGS-1510 SmartPro series in a single stack to allow simultaneous and easy configuration, management and troubleshooting.

Flexibility and Scalability

The DGS-1510 Series supports virtual stacking via D-Link's Single IP Management (SIM), allowing up to 32 devices to be managed via a single IP. This simplifies management of small workgroups or wiring closets while allowing the network to be scaled to handle increased bandwidth demand. SIM reduces the number of IP address needed in the network and allows switches to be stacked together over Ethernet instead of using physical uplink or stacking ports. This eliminates the need for specialized stacking cables and removes distance barriers that can limit topology options when using other stacking technology.

Extensive Layer 2 Features

The DGS-1510 Series switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shut down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can quickly discover the type of error on cables and determine the cable quality.

Management & Protocols
ManageableYes
Network & Communication
Layer Supported3
Warranty
Limited WarrantyLifetime
Power Description
Power SourcePower Supply
Redundant Power Supply SupportedNo
I/O Expansions
Expansion Slot TypeSFP+
Number of Total Expansion Slots4
Number of SFP+ Slots4
Basic
Product TypeEthernet Switch
Power SourcePower Supply
Layer Supported3
Form FactorRack-mountable
Network Technology10GBase-SR
10GBase-X
10/100/1000Base-T
1000Base-LX
1000Base-SX
1000Base-T
1000Base-X
10GBase-LRM
Brand NameD-Link
Expansion Slot TypeSFP+
ManageableYes
Ethernet TechnologyGigabit Ethernet
10 Gigabit Ethernet
Number of Total Expansion Slots4
Product FamilySmartPro DGS-1510
Stack PortYes
Media Type SupportedOptical Fiber
Twisted Pair
Total Number of Network Ports24
Port/Expansion Slot DetailsGigabit Ethernet
10 Gigabit Ethernet
Redundant Power Supply SupportedNo
Interfaces/Ports
ModularYes
Uplink PortNo
Stack PortYes
Total Number of Network Ports24
Port/Expansion Slot Details4 x 10 Gigabit Ethernet Expansion Slot
24 x Gigabit Ethernet Network
Physical Characteristics
Weight (Approximate)2 kg
Form FactorRack-mountable
Height43.9 mm
Width440.9 mm
Depth209.8 mm
Compatible Rack Unit1U
General Information
Product TypeEthernet Switch
Manufacturer Part NumberDGS-1510-28XMP
Manufacturer Website Addresshttp://www.dlink.co.uk
ManufacturerD-Link Systems, Inc
Product ModelDGS-1510-28XMP
Product NameSmartPro 28-Port Gigabit PoE Switch with 4 10GbE SFP+
Product LineSmartPro
Product SeriesDGS-1510
Brand NameD-Link
Media & Performance
Network Technology1000Base-SX
10GBase-LRM
10GBase-SR
1000Base-LX
1000Base-X
1000Base-T
10GBase-X
10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
10 Gigabit Ethernet
Media Type SupportedOptical Fiber
Twisted Pair
