StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - 2 x 7-pin ...Read More
StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - 2 x 7-pin Female Serial ATA Internal, 2 x 7-pin Female External SATA - PCI Express x1 Less
VPN: PEXESAT322I SKU: V932087 EAN: 0065030848428

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - 2 x 7-pin Female Serial ATA Internal, 2 x 7-pin Female External SATA - PCI Express x1

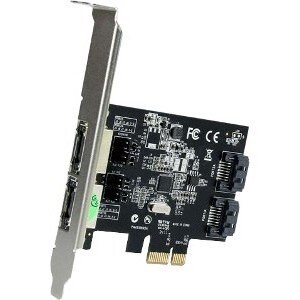

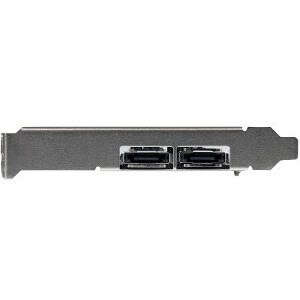

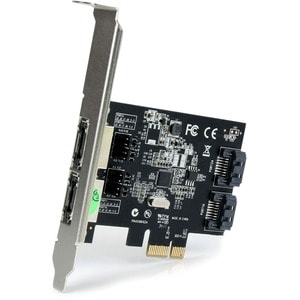

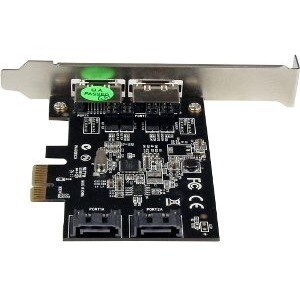

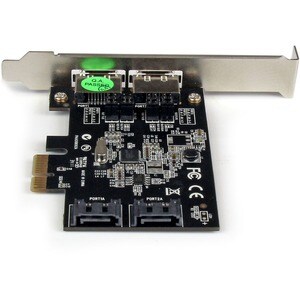

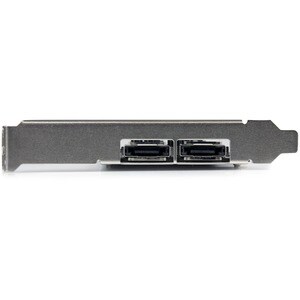

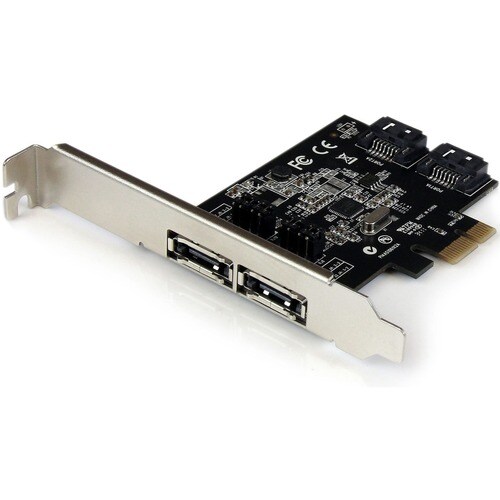

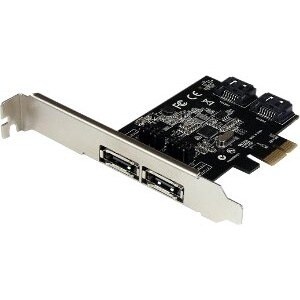

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.

More from the Manufacturer

Guides & Documents
Miscellaneous
Platform SupportedPC
Technical Information
Host InterfacePCI Express x1
Controller TypeSerial ATA/600
General Information
Product TypeSATA Controller
Manufacturer Part NumberPEXESAT322I
Manufacturer Website Addresshttp://www.startech.com/uk
Packaged Quantity1
ManufacturerStarTech.com
Product NamePCIe SATA Controller
Brand NameStarTech.com
Interfaces/Ports
Total Number of SATA Ports4
Number of SATA Ports (Internal)2
Number of SATA Ports (External)2
Physical Characteristics
Thickness20.3 mm
Weight (Approximate)59.5 g
Form FactorPlug-in Card
Height66 mm
Width121.9 mm
